SulfiLogger^TM H₂S传感器提供了卓越的洞察力，使您能够采用主动和数据驱动的方法来控制废水、沼气和石油天然气行业的气味和腐蚀。

H₂S sensor models
	SulfiLogger^TM S1/X1-1020	SulfiLogger^TM S1/X1-1120	SulfiLogger^TM X1-1220
Measurement media	Wastewater (mg/L) Air (ppm)	Pressurized wastewater (mg/L) Biogas (ppm)	Pressurized process water (mg/L) Natural gas (ppm)
Measurement range	Low range 0-0,5 mg/L 0-100 ppm	Low range 0-0,5 mg/L 0-100 ppm	Low range 0-0,5 mg/L 0-100 ppm
	Normal range 0-5 mg/L 0-1000 ppm	Normal range 0-5 mg/L 0-1000 ppm	Normal range 0-5 mg/L 0-1000 ppm
	Custom range Custom measurement ranges upon request	Custom range Custom measurement ranges upon request	Custom range Custom measurement ranges upon request
Max pressure	3 barg (44 psig)	3 barg (44 psig)	3 barg (44 psig) Custom pressure rating upon request
Operating temperature range	0 °C to +40 °C (32 °F to +104 °F)	0 °C to +40 °C (32 °F to +104 °F)	0 °C to +60 °C (32 °F to +140 °F)
Front design	Passive anti-fouling flush front for sensor submersion	Threaded G 1″ (ISO 228-1, BSPP)	Threaded G 1″ (ISO 228-1, BSPP)
Material	Stainless Steel EN 1.4404 (316L)	Stainless Steel EN 1.4404 (316L)	Surface treated stainless steel for improved corrosion resistance EN 1.4404 (316L)

Technical specifications
Accuracy	+/- 5% of reading
Detection limit	1% of full range
Response time	<25 seconds
Operating humidity range	0-100%
Max water depth	10 metres
Storage temperature range	0 °C to +40 °C (32 °F to +104 °F)
Design temperature range	-20 °C to +60 °C (-4 °F to +140 °F)
Power input options	4-20 mA loop power DC power (12-28 VDC) Batteries*
Data output options	4-20 mA analogue signal RS-232 digital signal Cloud data*

* With the PowerCom Box only.

Mechanical & other specifications
Length	240 mm (9.4 in)
Diameter	48.3 mm (1.9 in)
Weight	0.85 kg (1.9 lb)
Warranty	1 year**
Chemical interferences specifications

** When used in accordance with the Installation Manual.

Certification
S1-series:
X1-series: ETL listed (cETLus marked) to Canadian and US General Safety and Hazardous (Class l, Div. 1) Locations* ATEX, UKEX, and IECEx approved for use in Zone 0 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga)*

Certification

S1-series:

X1-series:

ETL listed (cETLus marked) to Canadian and US General Safety and Hazardous (Class l, Div. 1) Locations***
ATEX, UKEX, and IECEx approved for use in Zone 0 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga)***

*** SulfiLogger™ X1 only. Certificates are available on sulfilogger.com/support.

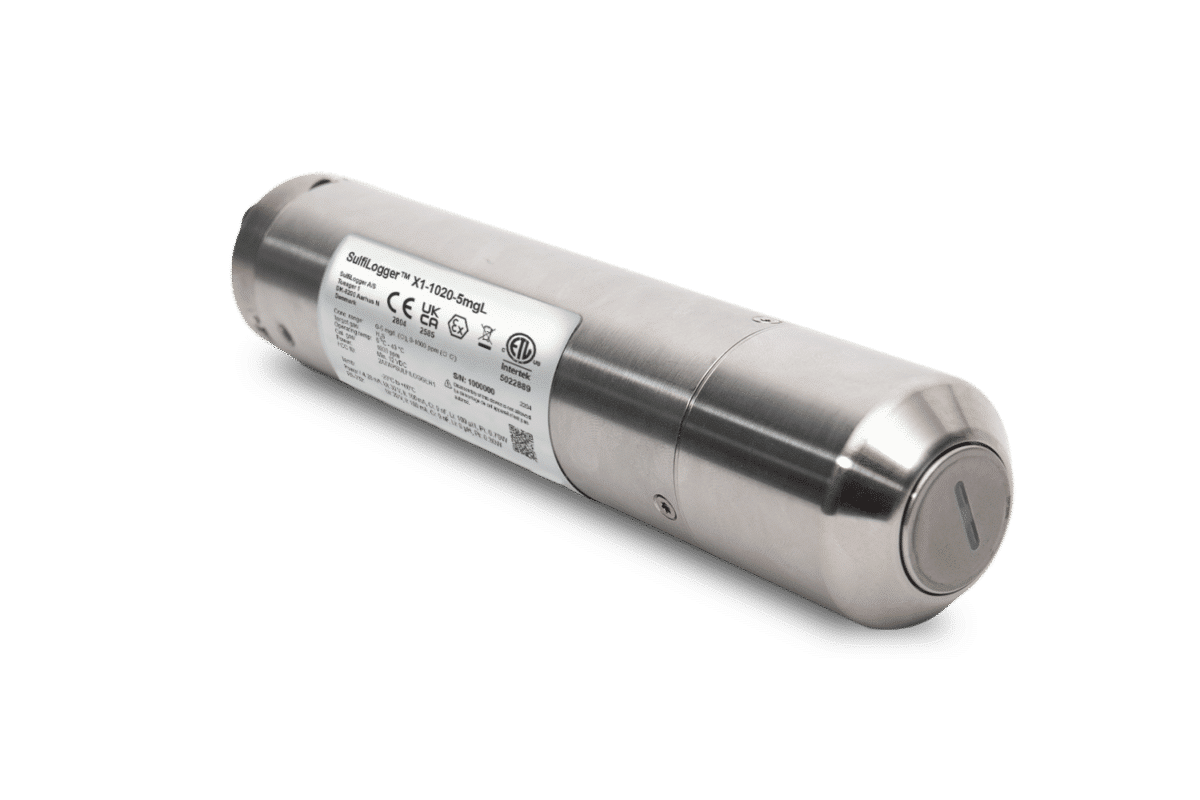

SulfiLogger™ H2S 传感器专为恶劣环境而设计，可直接测量空气中和工艺气流中的气相硫化氢，以及工艺用水和废水中的液相溶解硫化氢。

这款坚固耐用的传感器可在相对湿度高达 100 % 的极端环境、压力下以及厌氧或缺氧条件下进行测量。
该传感器适用于许多工业应用，包括：
